| Brand Name : | Longtai |
| Model Number : | AAfiller |
| Certification : | SGS |
| Price : | US $1 - 1.21 / Kilogram |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 500 T per month |
| Delivery Time : | 25 days after receiving offical order |
Se: For filling cable
Type: 0.5mm-10mm; 10000D, 20000D, 30000D, 50000D, LOI>27
Composition: 100% PP,
Polyester cable yarn 250D, 1000D--
Aramid yarn 200D, 400D, 1000D
The glass filler yarns are produced out of glass fiber material,
range of 1mm---20mm
Retardant cable yarn
Low smoke zero halogen
| Advantage: Cheap price, suitable for large cable. |
Item | |||
Linear Density | D | +/-10% | 2------50mm Denier:20000D---800KD |
Breaking Strength | g/D | 0.2---0.6 | |
Breaking Elongation | % | 20 | |
Hot Shrinkage rate | % | 6 | 100°C*1min. |
Tube size | mm | 1 ID: 90, H:255 2. ID:38,H:220 3. ID:50,H:270 4. ID:75, H:440 | |
Packing | 6----50KG/ROLL | ||
cheap cable pp filler yarn with mixed caco3 :
1-----5 PLY,2-----50MM,4-----8 TPM
this kinds of pp cable filler yarn price is the cheapest.

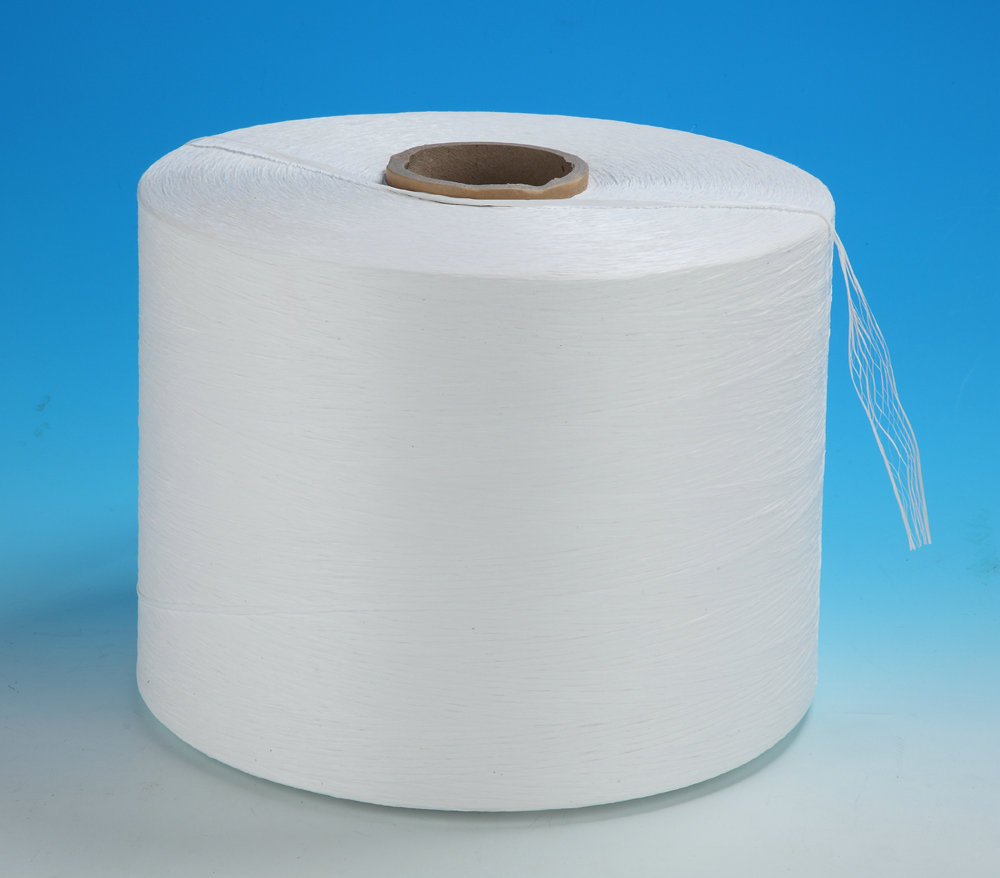

100% PP filler yarn
Linear Density | 12000D | 18000D | 22000D | 28000D | 33000D | 48000D | 60000D | 70000D | 90000D |
(weight)g/m | 1.33+0.13 -0.13 | 2+0.2 -0.2 | 2.44+0.22 -0.22 | 3.11+0.31 -0.31 | 3.67+0.37 - 0.37 | 5.33+0.53 -0.53 | 6.67+0.67 -0.67 | 7.77+0.77 -0.77 | 10+1.0 -1.0 |
Diameter (mm) | 1.5 | 2 | 2.3 | 2.5 | 2.7 | 3.2 | 3.8 | 4.5 | 5 |
Breaking Strength (kg) equal or more | 24 | 36 | 44 | 56 | 66 | 96 | 120 | 140 | 180 |
(%) Breaking Elongation equal or more | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Hot Shrinkage rate (%) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
PP filler yarn Specificatioms | ||||||
| PP filler yarn Item | Unit | pp filler yarn standard | Remark | |||
| PP yarn Fineness | D | specification±8% | 3000D-300000D | |||
| PP yarn Breaking | g/d | >3.5 | ||||
| tenacity | ||||||
| PP yarn Tensibility | % | <20 | ||||
| PP yarn shrinkage | % | <10 | 120*30min | |||
| PP yarn in hot air | ||||||
| PP yarn Appearance | Natural Color or White,color | |||||
| obvious stations | ||||||
Flame retardant PP filler yarn
Specifications:
Item | Unit | General FR PP filler yarn | LOW SMOKE FR PP filler yarn |
Denier | D | +/- 10% | +/- 10% |
Density | 0.92 | 0.92 | |
Tenacity | g/D | >2.0 | 2.5 |
Oxygen index | 28 | 28 | |
Elongation | % | 10 | 10 |
Heat shrinkage(100deg20min) | % | 5 | 5 |
Hologen | >10000PPM | <1000ppm | |
Burning smoke | Big smoke | Less smoke | |
Appearance | Raw white,no obvious stain | ||
Package | Mark:Product name, weight,denier,batch No. | ||
Use: For cable filler, OPTICAL FIBER FILL
Denier: 2000D-500KD
Twiste and Plain(Non twisted)
1. Material: 100%Polypropylene or PP+Caco3
2. Application: It is used for filler of the flame-retardant,
fire-resistant, LSOH flame-retardant, fire (oxygen) separated, LSLH
flame-retardant cables.
3. Function of the filler string in the flame-retardant cable
component:
A)It ensures that the cable is of good roundness.
B)It can improve flame-retardant class of the cable when use filler
with high oxygen index.
C)It can fix the cable core in a stable position.
D)It can increase cable's tensile strength.
4. Requirement to filler used for the flame-retardant cable:
A)It mustn't absorb the moisture.
B)Its operation temperature should be the same with that of the
cable.
C)It should not pollute the environment and do harm to human body
in process of wrapping.
D)It should have good tensile strength and certain elongation.
5. Storage: It should be stored in the dry and clean warehouse and
the shelf life is 18 months after the manufacturing date.
