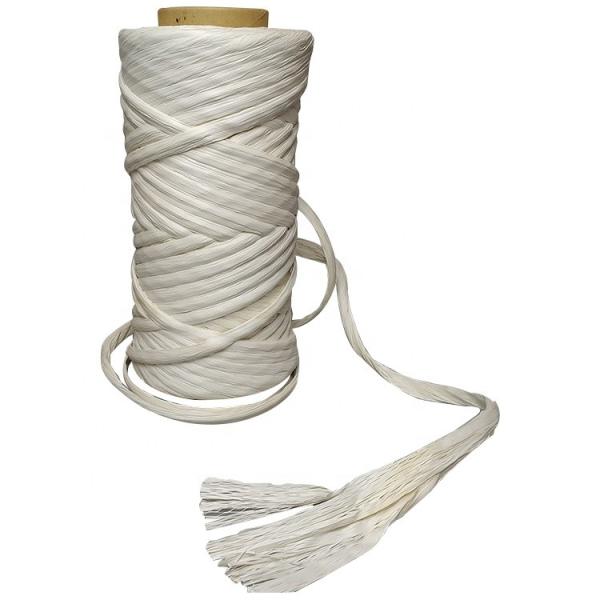

    White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable

    Ask Lasest Price
    Brand Name : Longtai
    Model Number : PP Filler Yarn
    Certification : SGS
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500T/month
    Delivery Time : 25-30days
    • Product Details
    • Company Profile

    White 2000Tex Flame Retardant FR PP Filler Yarn Insulation Filler For Cable


    Good Quality Halogen Free Fr PP Cable Filler


    Use: For filling cable
    Type: 0.5mm-10mm; 10000D, 20000D, 30000D, 50000D, LOI>27
    Composition: 100% PP,
    Polyester cable yarn 250D, 1000D--
    Aramid yarn 200D, 400D, 1000D

    The glass filler yarns are produced out of glass fiber material, range of 1mm---20mm
    Retardant cable yarn
    Low smoke zero halogen
    Advantage: Cheap price, suitable for large cable.


    Flame retardant PP filler yarn

    Specifications:


    Item

    Unit

    General FR PP filler yarn

    LOW SMOKE FR PP filler yarn

    Denier

    D

    +/- 10%

    +/- 10%

    Density

    0.92

    0.92

    Tenacity

    g/D

    >2.0

    2.5

    Oxygen index

    28

    28

    Elongation

    %

    10

    10

    Heat shrinkage(100deg20min)

    %

    5

    5

    Hologen

    >10000PPM

    <1000ppm

    Burning smoke

    Big smoke

    Less smoke

    Appearance

    Raw white,no obvious stain

    Package

    Mark:Product name, weight,denier,batch No.




    1. 100% PP filler yarn

    Linear Density

    12000D

    18000D

    28000D

    33000D

    48000D

    60000D

    70000D

    90000D


    (weight)g/m

    1.33+0.13
    -0.13


    2+0.2
    -0.2

    3.11+0.31
    -0.31

    3.67+0.37
    - 0.37


    5.33+0.53
    -0.53

    6.67+0.67
    -0.67

    7.77+0.77
    -0.77

    10+1.0
    -1.0


    Diameter
    (mm)

    1.5

    2

    2.5

    2.7

    3.2

    3.8

    4.5

    5


    Breaking
    Strength
    (kg)
    equal or more

    24


    36

    56

    66


    96

    120

    140


    180

    (%)
    Breaking Elongation
    equal or more

    10


    10

    10

    10


    10

    10

    10


    10



    2. Standard cable pp filler yarn with mixed Caco3 :
    0.5----30MM, 4----10 TPM
    Standard pp cable filler yarn, price is not high, good effect of cable filling,
    no knot packing, can be used in kinds of cable and wire


    Advantage: Cheap price, suitable for large cable.


    Linear Density

    D

    +/-10%

    0.5 --30MM
    Denier:9000D---300KD


    Breaking Strength

    g/D

    0.6--1.4


    Breaking Elongation

    %

    20


    Hot Shrinkage rate

    %

    6

    100°C*1min.


    Tube size

    mm

    1 ID: 90, H:255
    2. ID: 38, H:220
    3. ID: 50, H:270
    4. ID: 75, H:440
    5. ID: 55, H: 300-400


    Packing

    5----50KG/ROLL


    PP+Caco3 Wire Cable PP Filler Specificatioms

    Item

    Unit

    standard

    Remark


    pp filler Fineness

    D

    specification±8%

    9000D-300000D


    pp filler Breaking

    g/d

    >0.6g/d--1.4


    tenacity


    Tensibility

    %

    <20


    shrinkage

    %

    <10

    120*30min


    in hot air


    Appreance

    Natural Color or Milky White
