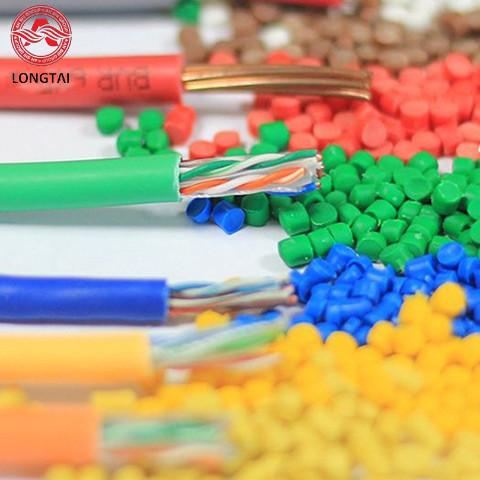

    Electrical Wires Flexible Soft PVC Granules for Automotive Cables

    Ask Lasest Price
    Brand Name : Longtai
    Model Number : prime polymers plastics raw materials
    Certification : Reach, Rohs, UL, CP 65, TSCA
    Price : US 0.9-1.1/Kilogram
    Payment Terms : T/T, L/C, , Western Union
    Supply Ability : 1000 Ton/Tons per Month
    Delivery Time : 7-10 Days
    • Product Details
    • Company Profile

    Electrical Wires Flexible Soft PVC Granules for Automotive Cables


    Flexible PVC/E for Electrical Wires and Cables Soft PVC Granules for Automotive Cables


    PVC Flexible


    PVC, Polyvinylchloride, is the most commonly use electrical cable insulation material. BUT there are differences.


    The standard designations of PVC insulation used in Australia are V-75, V-90, and V-90HT. Regardless of their designation all grades of PVC are rated at 75°C operating temperature for continuous use.


    The intent of the higher rated PVC cables, V-90 and V-90HT, is to allow these cables to operate at higher rated temperatures only under certain special conditions. These conditions are outlined in AS/NZ 3000:2007 and in AS/NZS 3008.1.1:2009, and generally restrict their usage to only those installations where the risk of mechanical damage is low. This is because PVC softens considerably at higher temperatures and therefore is more vulnerable to damage.


    Polyvinyl chloride (PVC) is a thermoplastic material. A typical formulation of this compound will consist of PVC copolymer, mineral fillers, lubricants, UV stabilisers, plasticisers and colourants.


    Deterioration happens because of thermal aging. Plasticisers and lubricants leach out of the compound due to their volatility during exposure to heat. Over time, this will cause the insulation to become hard and brittle leading to cracking and eventual disintegration of the insulation, leading to live conductors becoming exposed.


    The over use of fillers and plasticisers found in some PVC insulations allows for cheaper prices but increases the deterioration effects.


    1.Technical Specifications


    TestUnitStandard
    Test Method is as per BS 7655-4.2:2000
    Properties in the state as manufactured
    Tensile StrengthN/mm2minimum12.5
    Elongation at Break%minimum150
    Properties After Aging in air oven
    Ageing conditions
    Temperature100±2
    Durationh7*24
    Tensile StrengthN/mm2minimum12.5
    Variation%maximum25
    Elongation at Break%minimum150
    Variation%maximum25
    Bending Test at Low Temperature
    Test Conditions
    Temperature-15±2
    Results to obtainedNo Cracks
    Elongation Test at Low Temperature
    Test Conditions
    Temperature-15±2
    Results to obtained
    Elongation without breakminimum20
    Impact Test at Low Temperature
    Temperature-15±2
    RequirementNo Cracks
    Pressure Test at High Temperature
    Test Conditions
    Temperature90±2
    Results to obtained for Depth of Indentation%maximum50
    Resistance to cracking
    Temperature150±2
    RequirementNo Cracks
    Loss of Mass
    Ageing conditions
    Temperature100±2
    Durationh7*24
    Value to be obtained for
    Loss of Massmg/cm2maximum1.5
    Hot Deformation Test(Only for specified radial thickness less than 0.4mm)
    (As per BS 6469-99.1,clause10)
    Deformationmaximum40
    Insulation Resistance Constant
    (As per BS 6469-99.2,clause8)
    Temperature20±2
    K Value0.0035

    2.Use and standard: Electric power Cable& Power Cablewire and cable


    3.Process: extrusion


    4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.


    5.color: Any colors, base on requirement.

    Black and white, gre for Shealthing PVC compound

    Red, Yellow, Blue, White and black for Insulation PVC compound


    Electrical Wires Flexible Soft PVC Granules for Automotive Cables


    6.Packing: 25kg net weight per in a kraft bag,We could support packaging agreed on by both manufacturer and client ! 18 Tons per 20GP, 25Tons per 40GP


    7. Transportation and Storage:

    This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.


    8.Factory Introduction:


    Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
    The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
    We always sincerely welcome any domestic and overseas customers with great enthusiasm.


    Electrical Wires Flexible Soft PVC Granules for Automotive CablesElectrical Wires Flexible Soft PVC Granules for Automotive Cables


    9.How To order :


    1. Let me know the models, specification, quantities, colors you want to order
    2. We will email you the Proforma Invoice based on your order information
    3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

    deliver the goods on request, original documents will be send against full payment

    Electrical Wires Flexible Soft PVC Granules for Automotive Cables


    Any questions, please do not hesitate to contact us.
