    UL PVC/D TI-2 Flexible PVC Compound For Industrial Cable 70 Degree

    Ask Lasest Price
    Brand Name : Longtai
    Model Number : prime polymers plastics raw materials
    Certification : Reach, Rohs, UL, CP 65, TSCA
    Price : US 0.9-1.1/Kilogram
    Payment Terms : T/T, L/C, , Western Union
    Supply Ability : 1000 Ton/Tons per Month
    Delivery Time : 7-10 Days
    • Product Details
    • Company Profile

    UL PVC/D TI-2 Flexible PVC Compound For Industrial Cable 70 Degree


    UL PVC/D TI-2 Flexible PVC Compound for Industrial Cable 70 Degree Polyvinyl Chloride PVC


    PVC Flexible


    PVC, Polyvinylchloride, is the most commonly use electrical cable insulation material.


    Basic formulation for the production of PVC insulation and jacket compounds for wire and cable is generally composed of the following:

    PVC resin
    Plasticizer
    Filler
    Pigment
    Stabilizers
    Lubricants
    Other additives.

    Our PVC compounds for wires & cables are complied with RoHS, we have directed customers to use our RoHS compliant products for their wires and cables to protect the environment.


    1.Technical Specifications


    TestUnitStandard
    Test Method is as per BS 7655-4.2:2000
    Properties in the state as manufactured
    Tensile StrengthN/mm2minimum12.5
    Elongation at Break%minimum150
    Properties After Aging in air oven
    Ageing conditions
    Temperature100±2
    Durationh7*24
    Tensile StrengthN/mm2minimum12.5
    Variation%maximum25
    Elongation at Break%minimum150
    Variation%maximum25
    Bending Test at Low Temperature
    Test Conditions
    Temperature-15±2
    Results to obtainedNo Cracks
    Elongation Test at Low Temperature
    Test Conditions
    Temperature-15±2
    Results to obtained
    Elongation without breakminimum20
    Impact Test at Low Temperature
    Temperature-15±2
    RequirementNo Cracks
    Pressure Test at High Temperature
    Test Conditions
    Temperature90±2
    Results to obtained for Depth of Indentation%maximum50
    Resistance to cracking
    Temperature150±2
    RequirementNo Cracks
    Loss of Mass
    Ageing conditions
    Temperature100±2
    Durationh7*24
    Value to be obtained for
    Loss of Massmg/cm2maximum1.5
    Hot Deformation Test(Only for specified radial thickness less than 0.4mm)
    (As per BS 6469-99.1,clause10)
    Deformationmaximum40
    Insulation Resistance Constant
    (As per BS 6469-99.2,clause8)
    Temperature20±2
    K Value0.0035

    2.Use and standard: Electric power Cable& Power Cablewire and cable


    3.Process: extrusion

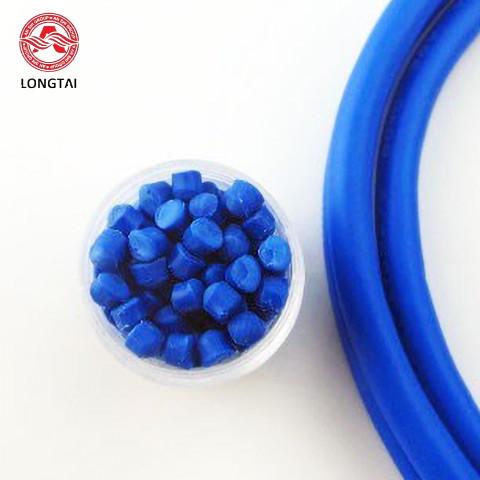

    4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.


    5.color: Any colors, base on requirement.

    Black and white, gre for Shealthing PVC compound

    Red, Yellow, Blue, White and black for Insulation PVC compound


    UL PVC/D TI-2 Flexible PVC Compound For Industrial Cable 70 Degree


    6.Packing: 25kg net weight per in a kraft bag,We could support packaging agreed on by both manufacturer and client ! 18 Tons per 20GP, 25Tons per 40GP


    7. Transportation and Storage:

    This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.


    8.Factory Introduction:


    Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
    The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
    We always sincerely welcome any domestic and overseas customers with great enthusiasm.


    UL PVC/D TI-2 Flexible PVC Compound For Industrial Cable 70 DegreeUL PVC/D TI-2 Flexible PVC Compound For Industrial Cable 70 Degree


    9.How To order :


    1. Let me know the models, specification, quantities, colors you want to order
    2. We will email you the Proforma Invoice based on your order information
    3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

    deliver the goods on request, original documents will be send against full payment

    UL PVC/D TI-2 Flexible PVC Compound For Industrial Cable 70 Degree


    Any questions, please do not hesitate to contact us.
